Product Categories
Filter Assemblies
The asterick in each product name should be replaced with the appropriate filter mesh size (see Part Numbers for full list part numbers with mesh sizes included).
Cold Water Screen Filters
NT 75-* P
Filter Type
Screen
Body Style
T-Style
MAterial
Polyester
Inlet/outlet
3/4" FPT
Flow Rate
1 - 25 GPM
Mesh Sizes
24, 30, 40, 60, 100, 140, 250, 500, 1000
Short Description
.75 inch Cold Water screen filter assembly with [*insert mesh size] mesh
Long Description
3/4” Cold Water Screen Full Filter Assembly with ‘T’ Style Body and [*insert mesh size] Mesh Polyester Filter Element
Part Numbers
NT 75-24 P, NT 75-30 P, NT 75-40 P, NT 75-60 P, NT 75-100 P, NT 75-140 P, NT 75-250 P, NT 75-500 P, NT 75-1000 P
NT 100-* P
Filter Type
Screen
Body Style
T-style
MAterial
Polyester
Inlet/outlet
1" SLIP
Flow Rate
1-25 GPM
Mesh Sizes
24, 30, 40, 60, 100, 140, 250, 500, 1000
Short Description
1 inch Cold Water screen filter assembly with [*insert mesh size] mesh
Long Description
1" Cold Water Screen Full Filter Assembly with 'T' Style Body and [*insert mesh size] Mesh Polyester Filter Element
Part Numbers
NT 100-24 P, NT 100-30 P, NT 100-40 P, NT 100-60 P, NT 100-100 P, NT 100-140 P, NT 100-250 P, NT 100-500 P, NT 100-1000 P

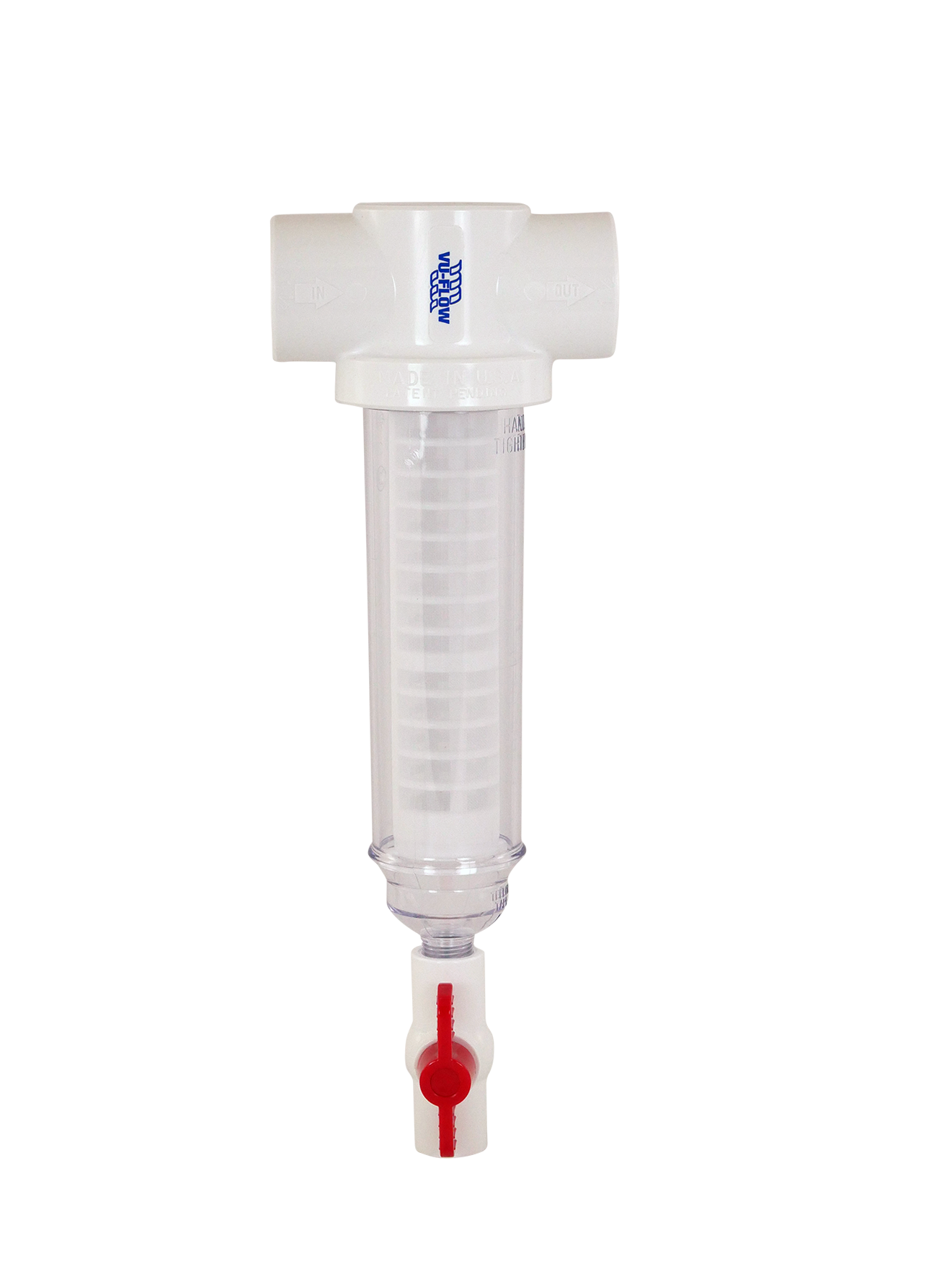

NT 150-* P
Filter Type
Screen
Body Style
T-style
MAterial
Polyester
Inlet/outlet
3/4" FPT
Flow Rate
10-50 GPM
Mesh Sizes
24, 30, 40, 60, 100, 140, 250, 500, 1000
Short Description
1.5 inch Cold Water screen filter assembly with [*insert mesh size] mesh
Long Description
1.5" Cold Water Screen Full Filter Assembly with 'T' Style Body and [*insert mesh size] Mesh Polyester Filter Element
Part Numbers
NT 150-24 P | NT 150-30 P | NT 150-40 P | NT 150-60 P | NT 150-100 P | NT 150-140 P | NT 150-250 P | NT 150-500 P | NT 150-1000 P
NT 200-* P
Filter Type
Screen
Body Style
T-Body
MAterial
Polyester
Inlet/outlet
2" SLIP
Flow Rate
18-100 GPM
Mesh Sizes
24, 30, 40, 60, 100, 140, 250, 500, 1000
Short Description
2 inch Cold Water screen filter assembly with [insert mesh size] mesh
Long Description
2" Cold Water Screen Full Filter Assembly with 'T' Style Body and [insert mesh size] Mesh Polyester Filter Element
Part Numbers
NT 200-24 P, NT 200-30 P, NT 200-40 P, NT 200-60 P, NT 200-100 P, NT 200-140 P, NT 200-250 P, NT 200-500 P, NT 200-1000 P
CF 150-* P
Filter Type
Screen
Body Style
Combo Filter
MAterial
Polyester
Inlet/outlet
1.5" SLIP
Flow Rate
10-50 GPM
Mesh Sizes
24, 30, 40, 60, 100, 140, 250, 500, 1000
Short Description
1.5 inch Cold Water screen filter assembly with [insert mesh size] mesh
Long Description
1.5" Cold Water Screen Full Filter Assembly with Combo Style Body and [insert mesh size] Mesh Polyester Filter Element
Part Numbers
CF 150-24 P, CF 150-30 P, CF 150-40 P, CF 150-60 P, CF 150-100 P, CF 150-140 P, CF 150-250 P, CF 150-500 P, CF 150-1000 P

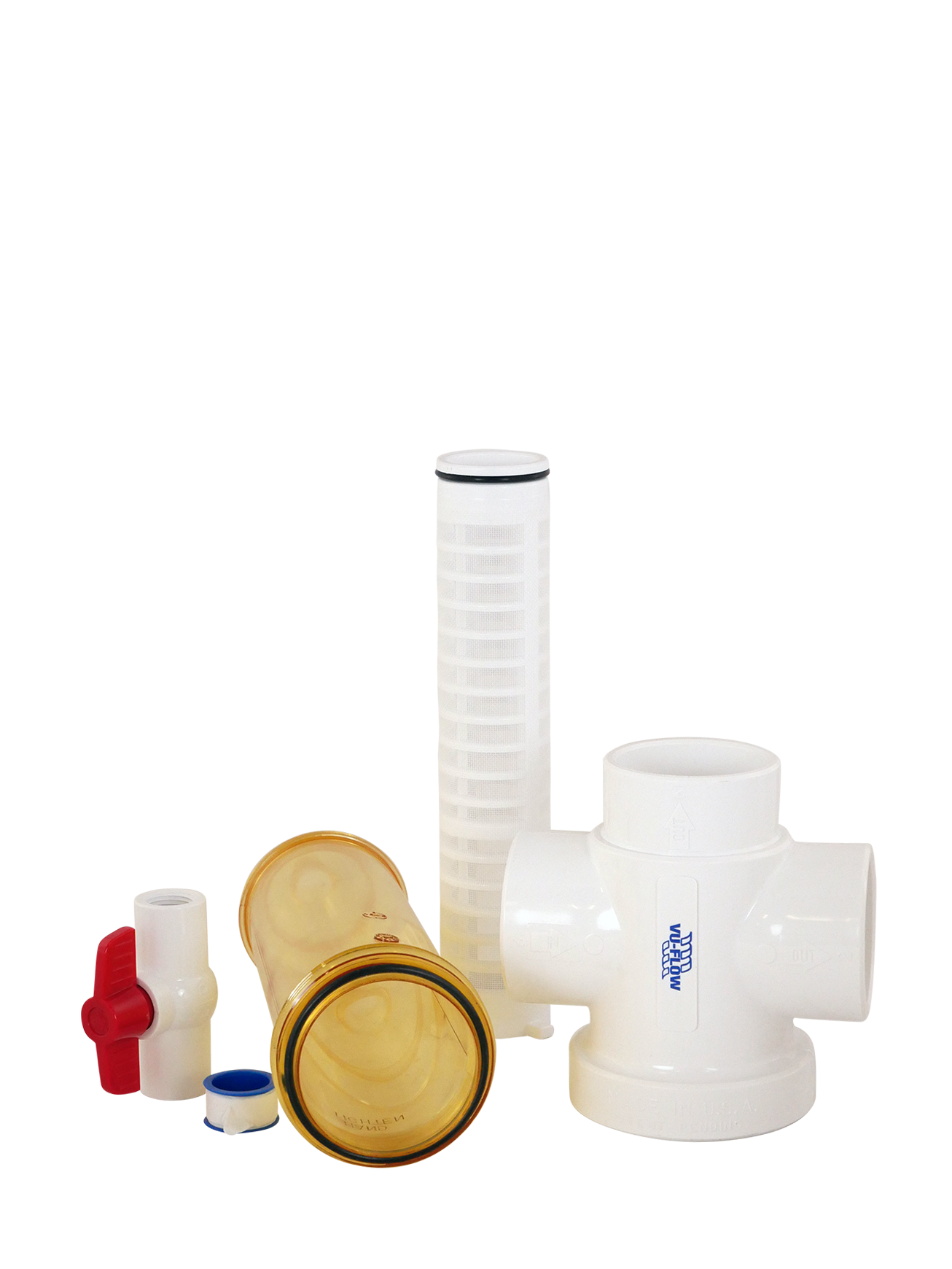

CF 200-* P
Filter Type
Screen
Body Style
Combo Filter
MAterial
Polyester
Inlet/outlet
2" SLIP
Flow Rate
18-100 GPM
Mesh Sizes
24, 30, 40, 60, 100, 140, 250, 500, 1000
Short Description
2 inch Cold Water screen filter assembly with [insert mesh size] mesh
Long Description
2" Cold Water Screen Full Filter Assembly with Combo Style Body and [insert mesh size] Mesh Polyester Filter Element
Part Numbers
CF 200-24 P, CF 200-30 P, CF 200-40 P, CF 200-60 P, CF 200-100 P, CF 200-140 P, CF 200-250 P, CF 200-500 P, CF 200-1000 P
L 150-*
Filter Type
Screen
Body Style
L-Style Body
MAterial
Polyester
Inlet/outlet
1.5" SLIP
Flow Rate
0-50 GPM
Mesh Sizes
24, 30, 40, 60, 100, 140, 250, 500, 1000
Short Description
1.5 inch Cold Water screen filter assembly with [insert mesh size] mesh
Long Description
1.5" Cold Water Screen Full Filter Assembly with 'L' Style Body and [insert mesh size] Mesh Polyester Filter Element
Part Numbers
L 150-24, L 150-30, L 150-40, L 150-60, L 150-100, L 150-140, L 150-250, L 150-500, L 150-1000
L 200-*
Filter Type
Screen
Body Style
L-Style Body
MAterial
Polyester
Inlet/outlet
2" SLIP
Flow Rate
0-100 GPM
Mesh Sizes
24, 30, 40, 60, 100, 140, 250, 500, 1000
Short Description
2 inch Cold Water screen filter assembly with [insert mesh size] mesh
Long Description
2" Cold Water Screen Full Filter Assembly with 'L' Style Body and [insert mesh size] Mesh Polyester Filter Element
Part Numbers
L 200-24, L 200-30, L 200-40, L 200-60, L 200-100, L 200-140, L 200-250, L 200-500, L 200-1000
NT 75-*SS P
Filter Type
Screen
Body Style
T-Body
MAterial
Stainless Steel
Inlet/outlet
3/4" FPT
Flow Rate
1-25 GPM
Mesh Sizes
30, 60, 100, 140, 200
Short Description
.75 inch Cold Water screen filter assembly with [insert mesh size] mesh stainless
Long Description
3/4" Cold Water Screen Full Filter Assembly with 'T' Style Body and [insert mesh size] Mesh Stainless Steel Filter Element
Part Numbers
NT 75-30SS P, NT 75-60SS P, NT 75-100SS P, NT 75-140SS P, NT 75-200SS P
NT 100-*SS P
Filter Type
Screen
Body Style
T-Body
MAterial
Stainless Steel
Inlet/outlet
1" SLIP
Flow Rate
1-25 GPM
Mesh Sizes
30, 60, 100, 140, 200
Short Description
1 inch Cold Water screen filter assembly with [insert mesh size] mesh stainless
Long Description
1" Cold Water Screen Full Filter Assembly with 'T' Style Body and [insert mesh size] Mesh Stainless Steel Filter Element
Part Numbers
NT 100-30SS P, NT 100-60SS P, NT 100-100SS P, NT 100-140SS P, NT 100-200SS P

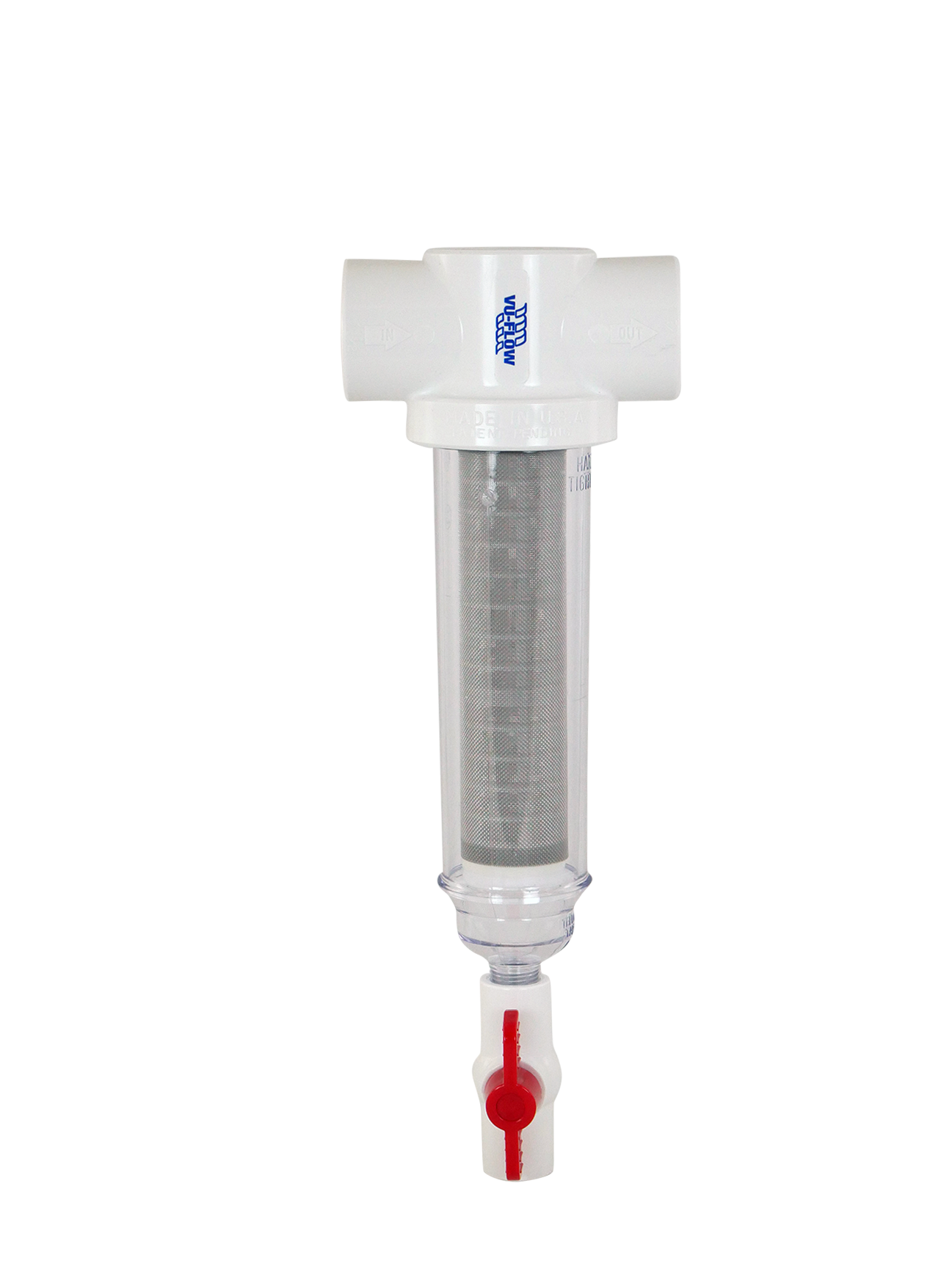

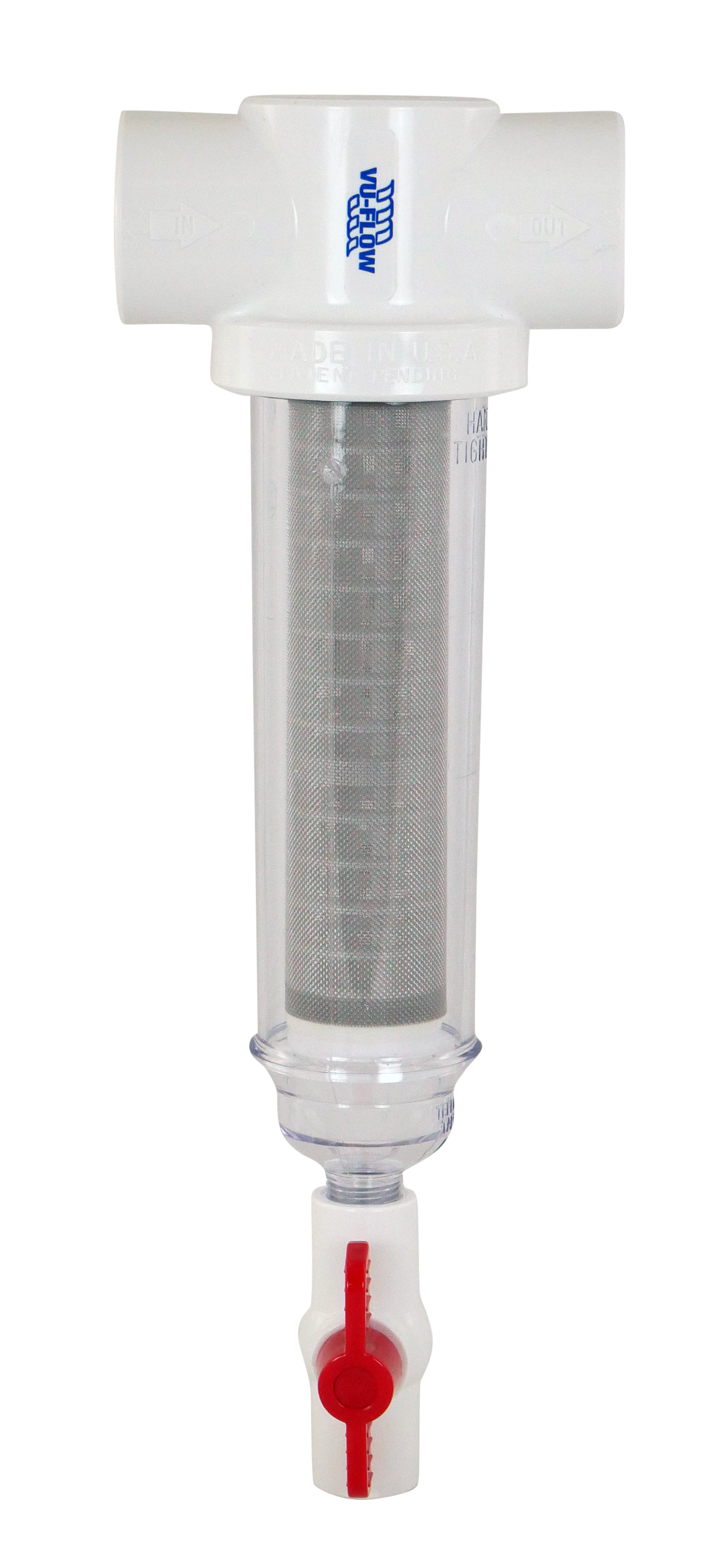

NT 150-*SS P
Filter Type
Screen
Body Style
T-Body
MAterial
Stainless Steel
Inlet/outlet
1.5" SLIP
Flow Rate
10-50 GPM
Mesh Sizes
30, 60, 100, 140, 200
Short Description
1.5 inch Cold Water screen filter assembly with [insert mesh size] mesh stainless
Long Description
1.5" Cold Water Screen Full Filter Assembly with 'T' Style Body and [insert mesh size] Mesh Stainless Steel Filter Element
Part Numbers
NT 150-30SS P, NT 150-60SS P, NT 150-100SS P, NT 150-140SS P, NT 150-200SS P
NT 200-*SS P
Filter Type
Screen
Body Style
T-Body
MAterial
Stainless Steel
Inlet/outlet
2" SLIP
Flow Rate
18-100 GPM
Mesh Sizes
30, 60, 100, 140, 200
Short Description
2 inch Cold Water screen filter assembly with [insert mesh size] mesh stainless
Long Description
2" Cold Water Screen Full Filter Assembly with 'T' Style Body and [insert mesh size] Mesh Stainless Steel Filter Element
Part Numbers
NT 200-30SS P, NT 200-60SS P, NT 200-100SS P, NT 200-140SS P, NT 200-200SS P

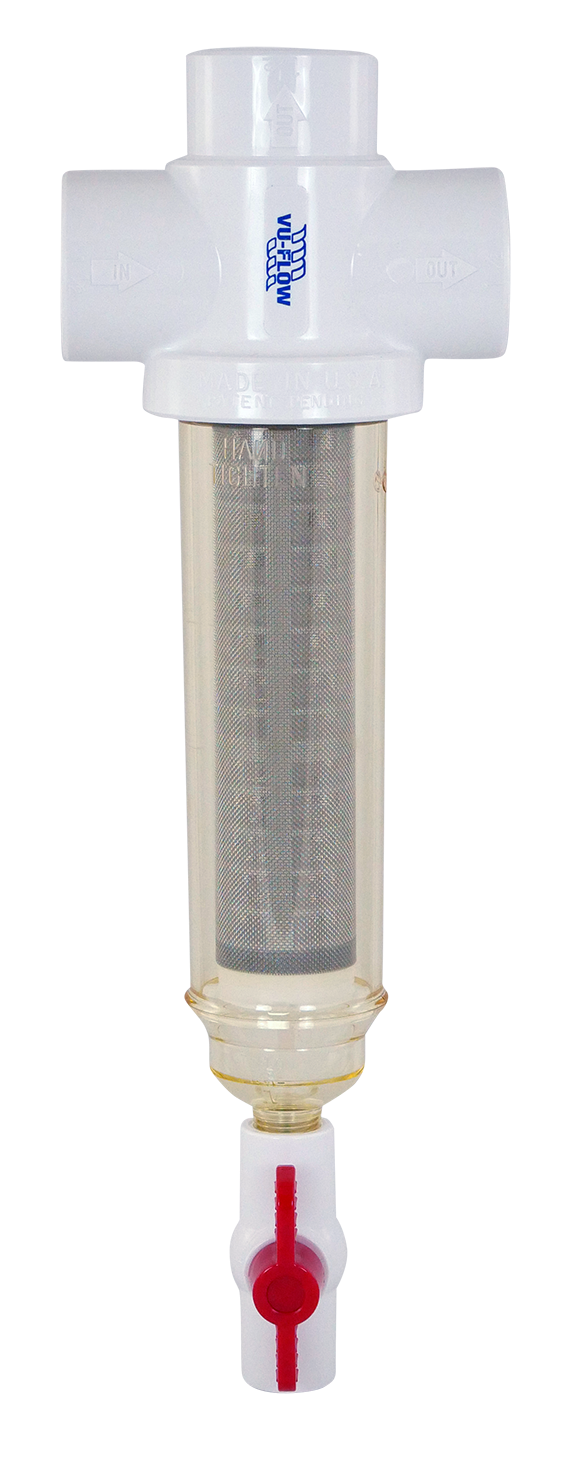

CF 150-*SS P
Filter Type
Screen
Body Style
Combo Filter
MAterial
Stainless Steel
Inlet/outlet
1.5" SLIP
Flow Rate
10-50 GPM
Mesh Sizes
30, 60, 100, 140, 200
Short Description
1.5 inch Cold Water screen filter assembly with [insert mesh size] mesh stainless
Long Description
1.5" Cold Water Screen Full Filter Assembly with Combo Style Body and [insert mesh size] Mesh Stainless Steel Filter Element
Part Numbers
CF 150-30SS P, CF 150-60SS, CF 150-100SS P, CF 150-140SS P, CF 150-200SS P
CF 200-*SS P
Filter Type
Screen
Body Style
Combo Style
MAterial
Stainless Steel
Inlet/outlet
2" SLIP
Flow Rate
18-100 GPM
Mesh Sizes
30, 60, 100, 140, 200
Short Description
2 inch Cold Water screen filter assembly with [insert mesh size] mesh stainless
Long Description
2" Cold Water Screen Full Filter Assembly with Combo Style Body and [insert mesh size] Mesh Stainless Steel Filter Element
Part Numbers
CF 200-30SS, P CF 200-60SS P, CF 200-100SS P, CF 200-140SS P, CF 200-200SS P
L 150-*SS
Filter Type
Screen
Body Style
L-Style
MAterial
Stainless Steel
Inlet/outlet
1.5" SLIP
Flow Rate
1-50 GPM
Mesh Sizes
30, 60, 100, 140, 200
Short Description
1.5 inch Cold Water screen filter assembly with [insert mesh size] mesh stainless
Long Description
1.5" Cold Water Screen Full Filter Assembly with 'L' Style Body and [insert mesh size] Mesh Stainless Steel Filter Element
Part Numbers
L 150-30SS, L 150-60SS, L 150-100SS, L 150-140SS, L 150-200SS
L 200-*SS
Filter Type
Screen
Body Style
L-Style
MAterial
Stainless Steel
Inlet/outlet
2" SLIP
Flow Rate
0-100 GPM
Mesh Sizes
30, 60, 100, 140, 200
Short Description
2 inch Cold Water screen filter assembly with [insert mesh size] mesh stainless
Long Description
2" Cold Water Screen Full Filter Assembly with 'L' Style Body and [insert mesh size] Mesh Stainless Steel Filter Element
Part Numbers
L 200-30SS, L 200-60SS, L 200-100SS, L 200-140SS, L 200-200SS
Cold Water Sand Separator Filters

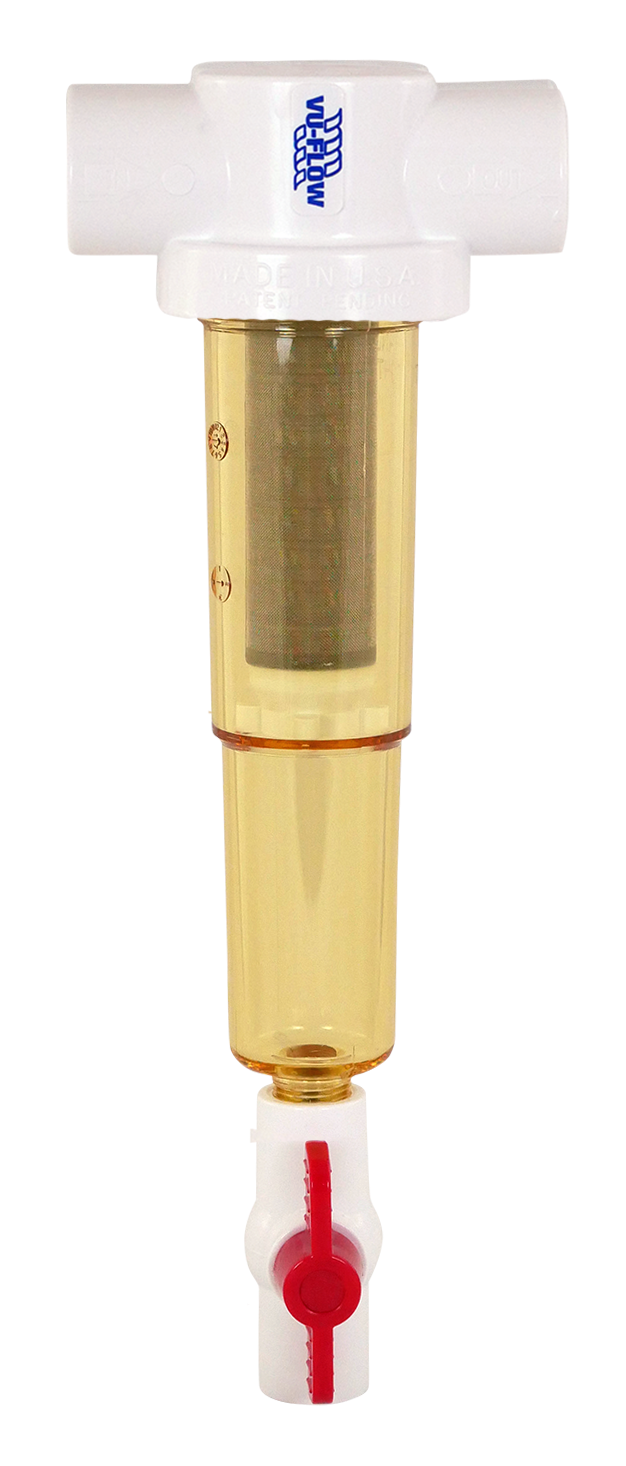

75 SO * P
Filter Type
Sand Separator
Body Style
T-Style
MAterial
Polyester
Inlet/Outlet
3/4" FPT
Flow Rate
1-25 GPM
Mesh Sizes
24, 30, 40, 60, 100, 140, 250, 500, 1000
Short Description
.75 inch Cold Water Sand Separator filter assembly with [insert mesh size] mesh
Long Description
3/4" Cold Water Sand Separator Full Filter Assembly with 'T' Style Body and [insert mesh size] Mesh Polyester Filter Element
Part Numbers
75 SO 24 P, 75 SO 30 P, 75 SO 40 P, 75 SO 60 P, 75 SO 100 P, 75 SO 140 P, 75 SO 250 P, 75 SO 500 P, 75 SO 1000 P

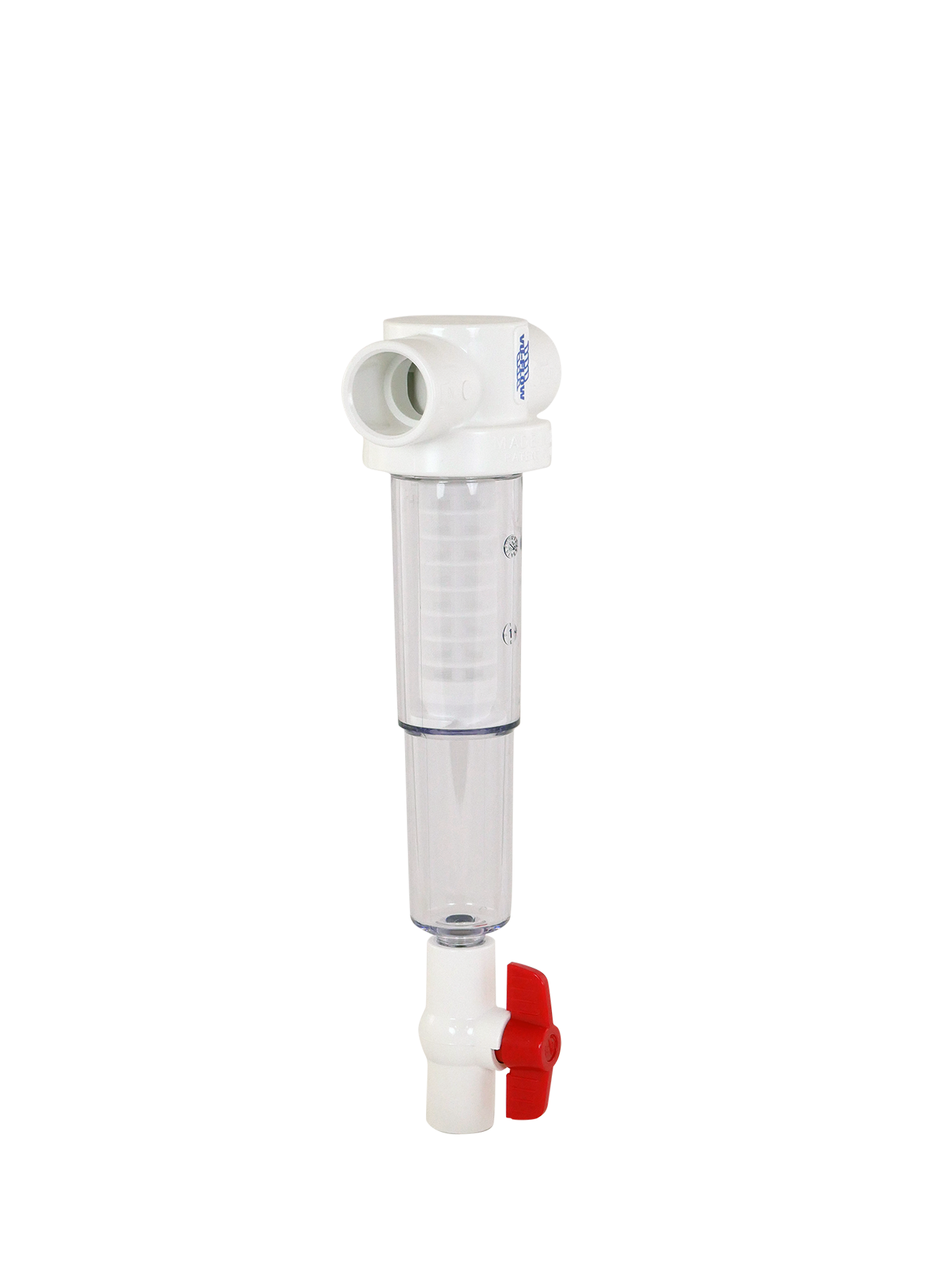

NT 1 SO * P
Filter Type
Sand Separator
Body Style
T-Style
MAterial
Polyester
Inlet/Outlet
1" SLIP
Flow Rate
1-25 GPM
Mesh Sizes
24, 30, 40, 60, 100, 140, 250, 500, 1000
Short Description
1 inch Cold Water Sand Separator filter assembly with [insert mesh size] mesh
Long Description
1" Cold Water Sand Separator Full Filter Assembly with 'T' Style Body and [insert mesh size] Mesh Polyester Filter Element
Part Numbers
NT 1 SO 24 P, NT 1 SO 30 P, NT 1 SO 40 P, NT 1 SO 60 P, NT 1 SO 100 P, NT 1 SO 140 P, NT 1 SO 250 P, NT 1 SO 500 P, NT 1 SO 1000 P

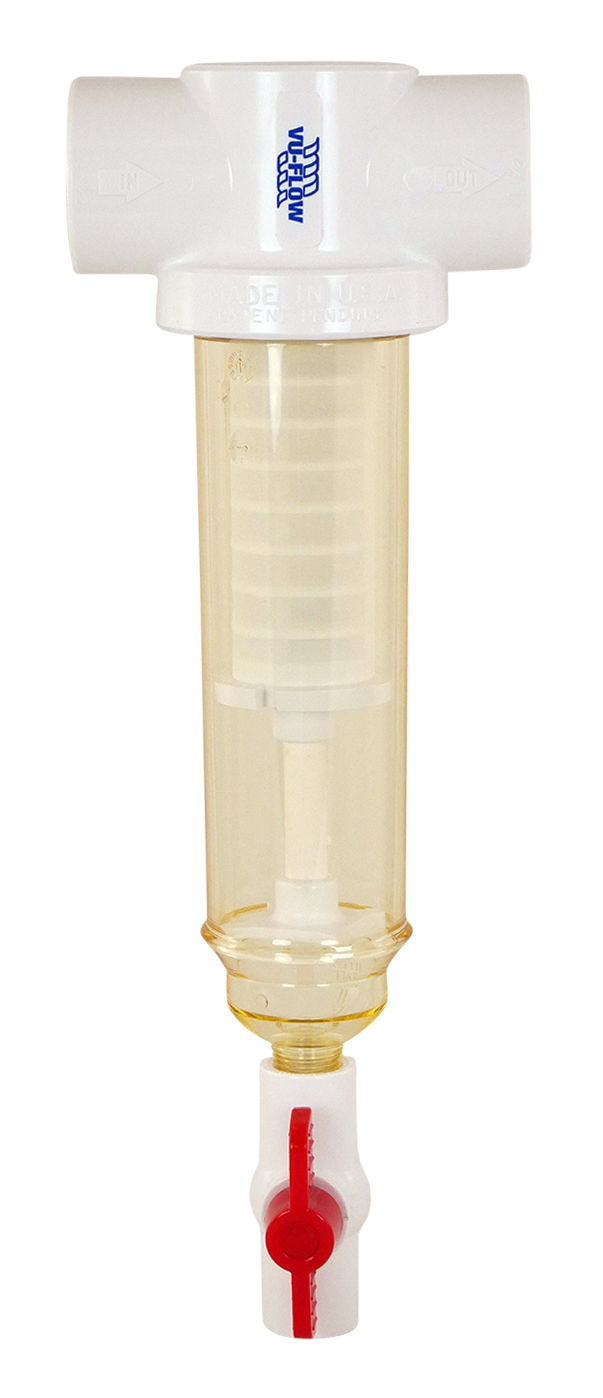

NT 1.5 SO * P
Filter Type
Sand Separator
Body Style
T-Style
MAterial
Polyester
Inlet/Outlet
1.5" SLIP
Flow Rate
10-50 GPM
Mesh Sizes
24, 30, 40, 60, 100, 140, 250, 500, 1000
Short Description
1.5 inch Cold Water Sand Separator filter assembly with [insert mesh size] mesh
Long Description
1.5" Cold Water Sand Separator Full Filter Assembly with 'T' Style Body and [insert mesh size] Mesh Polyester Filter Element
Part Numbers
NT 1.5 SO 24 P, NT 1.5 SO 30 P, NT 1.5 SO 40 P, NT 1.5 SO 60 P, NT 1.5 SO 100 P, NT 1.5 SO 140 P, NT 1.5 SO 250 P, NT 1.5 SO 500 P, NT 1.5 SO 1000 P

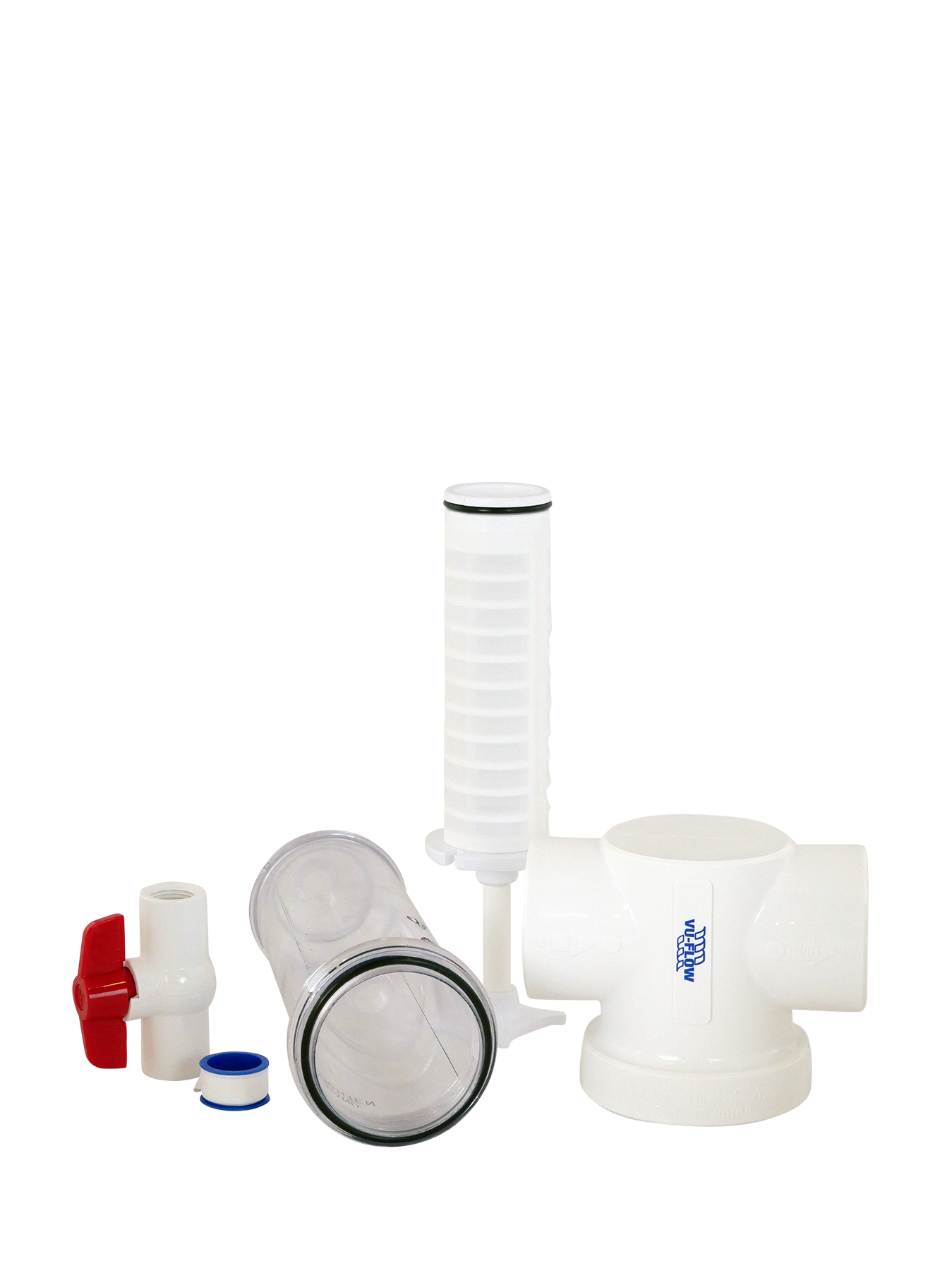

NT 2 SO * P
Filter Type
Sand Separator
Body Style
T-Style
MAterial
Polyester
Inlet/Outlet
2" SLIP
Flow Rate
18-100 GPM
Mesh Sizes
24, 30, 40, 60, 100, 140, 250, 500, 1000
Short Description
2 inch Cold Water Sand Separator filter assembly with [insert mesh size] mesh
Long Description
2" Cold Water Sand Separator Full Filter Assembly with 'T' Style Body and [insert mesh size] Mesh Polyester Filter Element
Part Numbers
NT 2 SO 24 P, NT 2 SO 30 P, NT 2 SO 40 P, NT 2 SO 60 P, NT 2 SO 100 P, NT 2 SO 140 P, NT 2 SO 250 P, NT 2 SO 500 P, NT 2 SO 1000 P
CF 1.5 SO * P
Filter Type
Sand Separator
Body Style
Combo Filter
MAterial
Polyester
Inlet/Outlet
1.5" SLIP
Flow Rate
10-50 GPM
Mesh Sizes
24, 30, 40, 60, 100, 140, 250, 500, 1000
Short Description
1.5 inch Cold Water Sand Separator filter assembly with [insert mesh size] mesh
Long Description
1.5" Cold Water Sand Separator Full Filter Assembly with Combo Style Body and [insert mesh size] Mesh Polyester Filter Element
Part Numbers
CF 1.5 SO 24 P, CF 1.5 SO 30 P, CF 1.5 SO 40 P, CF 1.5 SO 60 P, CF 1.5 SO 100 P, CF 1.5 SO 140 P, CF 1.5 SO 250 P, CF 1.5 SO 500 P, CF 1.5 SO 1000 P
CF 2 SO * P
Filter Type
Sand Separator
Body Style
Combo Filter
MAterial
Polyester
Inlet/Outlet
2" SLIP
Flow Rate
18-100 GPM
Mesh Sizes
24, 30, 40, 60, 100, 140, 250, 500, 1000
Short Description
2 inch Cold Water Sand Separator filter assembly with [insert mesh size] mesh
Long Description
2" Cold Water Sand Separator Full Filter Assembly with Combo Style Body and [insert mesh size] Mesh Polyester Filter Element
Part Numbers
CF 2 SO 24 P, CF 2 SO 30 P, CF 2 SO 40 P, CF 2 SO 60 P, CF 2 SO 100 P, CF 2 SO 140 P, CF 2 SO 250 P, CF 2 SO 500 P, CF 2 SO 1000 P
L 1.5 SO * P
Filter Type
Sand Separator
Body Style
L-Style
MAterial
Polyester
Inlet/Outlet
1.5" SLIP
Flow Rate
5-20 GPM (LP), 15-40 GPM (HP)
Mesh Sizes
24, 30, 40, 60, 100, 140, 250, 500, 1000
Short Description
1.5 inch Cold Water Sand Separator filter assembly with [insert mesh size] mesh
Long Description
1.5" Cold Water Sand Separator Full Filter Assembly with 'L' Style Body and [insert mesh size] Mesh Polyester Filter Element
Part Numbers
L 1.5 SO 24 P, L 1.5 SO 30 P, L 1.5 SO 40 P, L 1.5 SO 60 P, L 1.5 SO 100 P, L 1.5 SO 140 P, L 1.5 SO 250 P, L 1.5 SO 500 P, L 1.5 SO 1000 P
L 2 SO * P
Filter Type
Sand Separator
Body Style
L-Style
MAterial
Polyester
Inlet/Outlet
2" SLIP
Flow Rate
35-90 GPM
Mesh Sizes
24, 30, 40, 60, 100, 140, 250, 500, 1000
Short Description
2 inch Cold Water Sand Separator filter assembly with [insert mesh size] mesh
Long Description
2" Cold Water Sand Separator Full Filter Assembly with 'L' Style Body and [insert mesh size] Mesh Polyester Filter Element
Part Numbers
L 2 SO 24 P, L 2 SO 30 P, L 2 SO 40 P, L 2 SO 60 P, L 2 SO 100 P, L 2 SO 140 P, L 2 SO 250 P, L 2 SO 500 P, L 2 SO 1000 P
75 SO *SS P
Filter Type
Sand Separator
Body Style
T-Style
MAterial
Stainless Steel
Inlet/Outlet
3/4" FPT
Flow Rate
1-25 GPM
Mesh Sizes
30, 60, 100, 140, 200
Short Description
.75 inch Cold Water Sand Separator filter assembly with [insert mesh size] mesh stainless
Long Description
3/4" Cold Water Sand Separator Full Filter Assembly with 'T' Style Body and [insert mesh size] Mesh Stainless Steel Filter Element
Part Numbers
75 SO 30SS P, 75 SO 60SS P, 75 SO 100SS P, 75 SO 140SS P, 75 SO 200SS P
NT 1 SO *SS P
Filter Type
Sand Separator
Body Style
T-Style
MAterial
Stainless Steel
Inlet/Outlet
1" SLIP
Flow Rate
1-25 GPM
Mesh Sizes
30, 60, 100, 140, 200
Short Description
1 inch Cold Water Sand Separator filter assembly with [insert mesh size] mesh stainless
Long Description
1" Cold Water Sand Separator Full Filter Assembly with 'T' Style Body and [insert mesh size] Mesh Stainless Steel Filter Element
Part Numbers
NT 1 SO 30SS P, NT 1 SO 60SS P, NT 1 SO 100SS P, NT 1 SO 140SS P, NT 1 SO 200SS P
NT 1.5 SO *SS P
Filter Type
Sand Separator
Body Style
T-Style
MAterial
Stainless Steel
Inlet/Outlet
1.5" SLIP
Flow Rate
10-50 GPM
Mesh Sizes
30, 60, 100, 140, 200
Short Description
1.5 inch Cold Water Sand Separator filter assembly with [insert mesh size] mesh stainless
Long Description
1.5" Cold Water Sand Separator Full Filter Assembly with 'T' Style Body and [insert mesh size] Mesh Stainless Steel Filter Element
Part Numbers
NT 1.5 SO 30SS P, NT 1.5 SO 60SS P, NT 1.5 SO 100SS P, NT 1.5 SO 140SS P, NT 1.5 SO 200SS P
NT 2 SO *SS P
Filter Type
Sand Separator
Body Style
T-Style
MAterial
Stainless Steel
Inlet/Outlet
2" SLIP
Flow Rate
18-100 GPM
Mesh Sizes
30, 60, 100, 140, 200
Short Description
2 inch Cold Water Sand Separator filter assembly with [insert mesh size] mesh stainless
Long Description
2" Cold Water Sand Separator Full Filter Assembly with 'T' Style Body and [insert mesh size] Mesh Stainless Steel Filter Element
Part Numbers
NT 2 SO 30SS P, NT 2 SO 60SS P, NT 2 SO 100SS P, NT 2 SO 140SS P, NT 2 SO 200SS P
CF 1.5 SO *SS P
Filter Type
Sand Separator
Body Style
Combo Filter
MAterial
Stainless Steel
Inlet/Outlet
1.5" SLIP
Flow Rate
10-50 GPM
Mesh Sizes
30, 60, 100, 140, 200
Short Description
1.5 inch Cold Water Sand Separator filter assembly with [insert mesh size] mesh stainless
Long Description
1.5" Cold Water Sand Separator Full Filter Assembly with Combo Style Body and [insert mesh size] Mesh Stainless Steel Filter Element
Part Numbers
CF 1.5 SO 30SS P, CF 1.5 SO 60SS P, CF 1.5 SO 100SS P, CF 1.5 SO 140SS P, CF 1.5 SO 200SS P
CF 2 SO *SS P
Filter Type
Sand Separator
Body Style
Combo Filter
MAterial
Stainless Steel
Inlet/Outlet
2" SLIP
Flow Rate
18-100 GPM
Mesh Sizes
30, 60, 100, 140, 200
Short Description
2 inch Cold Water Sand Separator filter assembly with [insert mesh size] mesh stainless
Long Description
2" Cold Water Sand Separator Full Filter Assembly with Combo Style Body and [insert mesh size] Mesh Stainless Steel Filter Element
Part Numbers
CF 2 SO 30SS P, CF 2 SO 60SS P, CF 2 SO 100SS P, CF 2 SO 140SS P, CF 2 SO 200SS P
L 1.5 SO *SS P
Filter Type
Sand Separator
Body Style
L-Style
MAterial
Stainless Steel
Inlet/Outlet
1.5" SLIP
Flow Rate
5-20 GPM (LP), 15-40 GPM (HP)
Mesh Sizes
30, 60, 100, 140, 200
Short Description
1.5 inch Cold Water Sand Separator filter assembly with [insert mesh size] mesh stainless
Long Description
1.5" Cold Water Sand Separator Full Filter Assembly with 'L' Style Body and [insert mesh size] Mesh Stainless Steel Filter Element
Part Numbers
L 1.5 SO 30SS P, L 1.5 SO 60SS P, L 1.5 SO 100SS P, L 1.5 SO 140SS P, L 1.5 SO 200SS P
L 2 SO *SS P
Filter Type
Sand Separator
Body Style
L-Style
MAterial
Stainless Steel
Inlet/Outlet
2" SLIP
Flow Rate
35-90 GPM
Mesh Sizes
30, 60, 100, 140, 200
Short Description
2 inch Cold Water Sand Separator filter assembly with [insert mesh size] mesh stainless
Long Description
2" Cold Water Sand Separator Full Filter Assembly with 'L' Style Body and [insert mesh size] Mesh Stainless Steel Filter Element
Part Numbers
L 2 SO 30SS P, L 2 SO 60SS P, L 2 SO 100SS P, L 2 SO 140SS P, L 2 SO 200SS P
Chemical Resistant Screen Filters
NT 75-* HPP
Filter Type
Screen
Body Style
T-Style
MAterial
Polyester
Inlet/outlet
3/4" FPT
Flow Rate
1-25 GPM
Mesh Sizes
24, 30, 40, 60, 100, 140, 250, 500, 1000
Short Description
.75 inch chemical resistant screen filter assembly with [insert mesh size] mesh
Long Description
3/4" Chemical Resistant Water Screen Full Filter Assembly with 'T' Style Body and [insert mesh size] Mesh Polyester Filter Element
Part Numbers
NT 75-24 HPP, NT 75-30 HPP, NT 75-40 HPP, NT 75-60 HPP, NT 75-100 HPP, NT 75-140 HPP, NT 75-250 HPP, NT 75-500 HPP, NT 75-1000 HPP
NT 100-* HPP
Filter Type
Screen
Body Style
T-Style
MAterial
Polyester
Inlet/outlet
1" SLIP
Flow Rate
1-25 GPM
Mesh Sizes
24, 30, 40, 60, 100, 140, 250, 500, 1000
Short Description
1 inch Chemical Resistant screen filter assembly with [insert mesh size] mesh
Long Description
1" Chemical Resistant Water Screen Full Filter Assembly with 'T' Style Body and [insert mesh size] Mesh Polyester Filter Element
Part Numbers
NT 100-24 HPP, NT 100-30 HPP, NT 100-40 HPP, NT 100-60 HPP, NT 100-100 HPP, NT 100-140 HPP, NT 100-250 HPP, NT 100-500 HPP, NT 100-1000 HPP
NT 150-* HPP
Filter Type
Screen
Body Style
T-Style
MAterial
Polyester
Inlet/outlet
1.5" SLIP
Flow Rate
10-50 GPM
Mesh Sizes
24, 30, 40, 60, 100, 140, 250, 500, 1000
Short Description
1.5 inch Chemical Resistant screen filter assembly with [insert mesh size] mesh
Long Description
1.5" Chemical Resistant Water Screen Full Filter Assembly with 'T' Style Body and [insert mesh size] Mesh Polyester Filter Element
Part Numbers
NT 150-24 HPP, NT 150-30 HPP, NT 150-40 HPP, NT 150-60 HPP, NT 150-100 HPP, NT 150-140 HPP, NT 150-250 HPP, NT 150-500 HPP, NT 150-1000 HPP
NT 200-* HPP
Filter Type
Screen
Body Style
T-Style
MAterial
Polyester
Inlet/outlet
2" SLIP
Flow Rate
18-100 GPM
Mesh Sizes
24, 30, 40, 60, 100, 140, 250, 500, 1000
Short Description
2 inch Chemical Resistant screen filter assembly with [insert mesh size] mesh
Long Description
2" Chemical Resistant Water Screen Full Filter Assembly with 'T' Style Body and [insert mesh size] Mesh Polyester Filter Element
Part Numbers
NT 200-24 HPP, NT 200-30 HPP, NT 200-40 HPP, NT 200-60 HPP, NT 200-100 HPP, NT 200-140 HPP, NT 200-250 HPP, NT 200-500 HPP, NT 200-1000 HPP
CF 150-* HPP
Filter Type
Screen
Body Style
Combo Filter
MAterial
Polyester
Inlet/outlet
1.5" SLIP
Flow Rate
10-50 GPM
Mesh Sizes
24, 30, 40, 60, 100, 140, 250, 500, 1000
Short Description
1.5 inch Chemical Resistant screen filter assembly with [insert mesh size] mesh
Long Description
1.5" Chemical Resistant Water Screen Full Filter Assembly with Combo Style Body and [insert mesh size] Mesh Polyester Filter Element
Part Numbers
CF 150-24 HPP, CF 150-30 HPP, CF 150-40 HPP, CF 150-60 HPP, CF 150-100 HPP, CF 150-140 HPP, CF 150-250 HPP, CF 150-500 HPP, CF 150-1000 HPP
CF 200-* HPP
Filter Type
Screen
Body Style
Combo Filter
MAterial
Polyester
Inlet/outlet
2" SLIP
Flow Rate
18-100 GPM
Mesh Sizes
24, 30, 40, 60, 100, 140, 250, 500, 1000
Short Description
2 inch Chemical Resistant screen filter assembly with [insert mesh size] mesh
Long Description
2" Chemical Resistant Water Screen Full Filter Assembly with Combo Style Body and [insert mesh size] Mesh Polyester Filter Element
Part Numbers
CF 200-24 HPP, CF 200-30 HPP, CF 200-40 HPP, CF 200-60 HPP, CF 200-100 HPP, CF 200-140 HPP, CF 200-250 HPP, CF 200-500 HPP, CF 200-1000 HPP
NT 75-*SS HPP
Filter Type
Screen
Body Style
T-Style
MAterial
Stainless Steel
Inlet/outlet
3/4" FPT
Flow Rate
1-25 GPM
Mesh Sizes
30, 60, 100, 140, 200
Short Description
.75 inch Chemical Resistant screen filter assembly with [insert mesh size] mesh stainless
Long Description
3/4" Chemical Resistant Water Screen Full Filter Assembly with 'T' Style Body and [insert mesh size] Mesh Stainless Steel Filter Element
Part Numbers
NT 75-30SS HPP, NT 75-60SS HPP, NT 75-100SS HPP, NT 75-140SS HPP, NT 75-200SS HPP
NT 100-*SS HPP
Filter Type
Screen
Body Style
T-Style
MAterial
Stainless Steel
Inlet/outlet
1" SLIP
Flow Rate
1-25 GPM
Mesh Sizes
30, 60, 100, 140, 200
Short Description
1 inch Chemical Resistant screen filter assembly with [insert mesh size] mesh stainless
Long Description
1" Chemical Resistant Water Screen Full Filter Assembly with 'T' Style Body and [insert mesh size] Mesh Stainless Steel Filter Element
Part Numbers
NT 100-30SS HPP, NT 100-60SS HPP, NT 100-100SS HPP, NT 100-140SS HPP, NT 100-200SS HPP
NT 150-*SS HPP
Filter Type
Screen
Body Style
T-Style
MAterial
Stainless Steel
Inlet/outlet
1.5" SLIP
Flow Rate
1-50 GPM
Mesh Sizes
30, 60, 100, 140, 200
Short Description
1.5 inch Chemical Resistant screen filter assembly with [insert mesh size] mesh stainless
Long Description
1.5" Chemical Resistant Water Screen Full Filter Assembly with 'T' Style Body and [insert mesh size] Mesh Stainless Steel Filter Element
Part Numbers
NT 150-30SS HPP, NT 150-60SS HPP, NT 150-100SS HPP, NT 150-140SS HPP, NT 150-200SS HPP
NT 200-*SS HPP
Filter Type
Screen
Body Style
T-Style
MAterial
Polyester
Inlet/outlet
2" SLIP
Flow Rate
18-100 GPM
Mesh Sizes
30, 60, 100, 140, 200
Short Description
2 inch Chemical Resistant screen filter assembly with [insert mesh size] mesh stainless
Long Description
2" Chemical Resistant Water Screen Full Filter Assembly with 'T' Style Body and [insert mesh size] Mesh Stainless Steel Filter Element
Part Numbers
NT 200-30SS HPP, NT 200-60SS HPP, NT 200-100SS HPP, NT 200-140SS HPP, NT 200-200SS HPP
CF 150-*SS HPP
Filter Type
Screen
Body Style
Combo Filter
MAterial
Stainless Still
Inlet/outlet
1.5" SLIP
Flow Rate
10-50 GPM
Mesh Sizes
30, 60, 100, 140, 200
Short Description
1.5 inch Chemical Resistant screen filter assembly with [insert mesh size] mesh stainless
Long Description
1.5" Chemical Resistant Water Screen Full Filter Assembly with Combo Style Body and [insert mesh size] Mesh Stainless Steel Filter Element
Part Numbers
CF 150-30SS HPP, CF 150-60SS HPP, CF 150-100SS HPP, CF 150-140SS HPP, CF 150-200SS HPP
CF 200-*SS HPP
Filter Type
Screen
Body Style
Combo Filter
MAterial
Stainless Steel
Inlet/outlet
2" SLIP
Flow Rate
18-100 GPM
Mesh Sizes
30, 60, 100, 140, 200
Short Description
2 inch Chemical Resistant screen filter assembly with [insert mesh size] mesh stainless
Long Description
2" Chemical Resistant Water Screen Full Filter Assembly with Combo Style Body and [insert mesh size] Mesh Stainless Steel Filter Element
Part Numbers
CF 200-30SS HPP, CF 200-60SS HPP, CF 200-100SS HPP, CF 200-140SS HPP, CF 200-200SS HPP
Chemical Resistant Sand Separator Filters
75 SO * HPP
Filter Type
Sand Separator
Body Style
T-Style
MAterial
Polyester
inlet/outlet
3/4" FPT
Flow Rate
1-25 GPM
Mesh Sizes
24, 30, 40, 60, 100, 140, 250, 500, 1000
Short Description
.75 inch Chemical Resistant Sand Separator filter assembly with [insert mesh size] mesh
Long Description
3/4" Chemical Resistant Water Sand Separator Full Filter Assembly with 'T' Style Body and [insert mesh size] Mesh Polyester Filter Element
Part Numbers
75 SO 24 HPP, 75 SO 30 HPP, 75 SO 40 HPP, 75 SO 60 HPP, 75 SO 100 HPP, 75 SO 140 HPP, 75 SO 250 HPP, 75 SO 500 HPP, 75 SO 1000 HPP
NT 1 SO * HPP
Filter Type
Sand Separator
Body Style
T-Style
MAterial
Polyester
inlet/outlet
1" SLIP
Flow Rate
1-25 GPM
Mesh Sizes
24, 30, 40, 60, 100, 140, 250, 500, 1000
Short Description
1 inch Chemical Resistant Sand Separator filter assembly with [insert mesh size] mesh
Long Description
1" Chemical Resistant Water Sand Separator Full Filter Assembly with 'T' Style Body and [insert mesh size] Mesh Polyester Filter Element
Part Numbers
NT 1 SO 24 HPP, NT 1 SO 30 HPP, NT 1 SO 40 HPP, NT 1 SO 60 HPP, NT 1 SO 100 HPP, NT 1 SO 140 HPP, NT 1 SO 250 HPP, NT 1 SO 500 HPP, NT 1 SO 1000 HPP
NT 1.5 SO * HPP
Filter Type
Sand Separator
Body Style
T-Style
MAterial
Polyester
inlet/outlet
1.5" SLIP
Flow Rate
10-50 GPM
Mesh Sizes
24, 30, 40, 60, 100, 140, 250, 500, 1000
Short Description
1.5 inch Chemical Resistant Sand Separator filter assembly with [insert mesh size] mesh
Long Description
1.5" Chemical Resistant Water Sand Separator Full Filter Assembly with 'T' Style Body and [insert mesh size] Mesh Polyester Filter Element
Part Numbers
NT 1.5 SO 24 HPP, NT 1.5 SO 30 HPP, NT 1.5 SO 40 HPP, NT 1.5 SO 60 HPP, NT 1.5 SO 100 HPP, NT 1.5 SO 140 HPP, NT 1.5 SO 250 HPP, NT 1.5 SO 500 HPP, NT 1.5 SO 1000 HPP
NT 2 SO * HPP
Filter Type
Sand Separator
Body Style
T-Style
MAterial
Polyester
inlet/outlet
2" SLIP
Flow Rate
18-100 GPM
Mesh Sizes
24, 30, 40, 60, 100, 140, 250, 500, 1000
Short Description
2 inch Chemical Resistant Sand Separator filter assembly with [insert mesh size] mesh
Long Description
2" Chemical Resistant Water Sand Separator Full Filter Assembly with 'T' Style Body and [insert mesh size] Mesh Polyester Filter Element
Part Numbers
NT 2 SO 24 HPP, NT 2 SO 30 HPP, NT 2 SO 40 HPP, NT 2 SO 60 HPP, NT 2 SO 100 HPP, NT 2 SO 140 HPP, NT 2 SO 250 HPP, NT 2 SO 500 HPP, NT 2 SO 1000 HPP
CF 1.5 SO * HPP
Filter Type
Sand Separator
Body Style
Combo Filter
MAterial
Polyester
inlet/outlet
1.5" SLIP
Flow Rate
10-50 GPM
Mesh Sizes
24, 30, 40, 60, 100, 140, 250, 500, 1000
Short Description
1.5 inch Chemical Resistant Sand Separator filter assembly with [insert mesh size] mesh
Long Description
1.5" Chemical Resistant Water Sand Separator Full Filter Assembly with Combo Style Body and [insert mesh size] Mesh Polyester Filter Element
Part Numbers
CF 1.5 SO 24 HPP, CF 1.5 SO 30 HPP, CF 1.5 SO 40 HPP, CF 1.5 SO 60 HPP, CF 1.5 SO 100 HPP, CF 1.5 SO 140 HPP, CF 1.5 SO 250 HPP, CF 1.5 SO 500 HPP, CF 1.5 SO 1000 HPP
CF 2 SO * HPP
Filter Type
Sand Separator
Body Style
Combo Filter
MAterial
Polyester
inlet/outlet
2" SLIP
Flow Rate
18-100 GPM
Mesh Sizes
24, 30, 40, 60, 100, 140, 250, 500, 1000
Short Description
2 inch Chemical Resistant Sand Separator filter assembly with [insert mesh size] mesh
Long Description
2" Chemical Resistant Water Sand Separator Full Filter Assembly with Combo Style Body and [insert mesh size] Mesh Polyester Filter Element
Part Numbers
CF 2 SO 24 HPP, CF 2 SO 30 HPP, CF 2 SO 40 HPP, CF 2 SO 60 HPP, CF 2 SO 100 HPP, CF 2 SO 140 HPP, CF 2 SO 250 HPP, CF 2 SO 500 HPP, CF 2 SO 1000 HPP
75 SO *SS HPP
Filter Type
Sand Separator
Body Style
T-Style
MAterial
Stainless Steel
inlet/outlet
3/4" FPT
Flow Rate
1-25 GPM
Mesh Sizes
30, 60, 100, 140, 200
Short Description
.75 inch Chemical Resistant Sand Separator filter assembly with [insert mesh size] mesh stainless
Long Description
3/4" Chemical Resistant Water Sand Separator Full Filter Assembly with 'T' Style Body and [insert mesh size] Mesh Stainless Steel Filter Element
Part Numbers
75 SO 30SS-HPP, 75 SO 60SS-HPP, 75 SO 100SS-HPP, 75 SO 140SS-HPP, 75 SO 200SS-HPP
NT 1 SO *SS HPP
Filter Type
Sand Separator
Body Style
T-Style
MAterial
Stainless Steel
inlet/outlet
1" SLIP
Flow Rate
1-25 GPM
Mesh Sizes
30, 60, 100, 140, 200
Short Description
1 inch Chemical Resistant Sand Separator filter assembly with [insert mesh size] mesh stainless
Long Description
1" Chemical Resistant Water Sand Separator Full Filter Assembly with 'T' Style Body and [insert mesh size] Mesh Stainless Steel Filter Element
Part Numbers
NT 1 SO 30SS HPP, NT 1 SO 60SS HPP, NT 1 SO 100SS HPP, NT 1 SO 140SS HPP, NT 1 SO 200SS HPP
NT 1.5 SO *SS HPP
Filter Type
Sand Separator
Body Style
T-Style
MAterial
Polyester
inlet/outlet
1.5" SLIP
Flow Rate
10-50 GPM
Mesh Sizes
30, 60, 100, 140, 200
Short Description
1.5 inch Chemical Resistant Sand Separator filter assembly with [insert mesh size] mesh stainless
Long Description
1.5" Chemical Resistant Water Sand Separator Full Filter Assembly with 'T' Style Body and [insert mesh size] Mesh Stainless Steel Filter Element
Part Numbers
NT 1.5 SO 30SS HPP, NT 1.5 SO 60SS HPP, NT 1.5 SO 100SS HPP, NT 1.5 SO 140SS HPP, NT 1.5 SO 200SS HPP
NT 2 SO *SS HPP
Filter Type
Sand Separator
Body Style
T-Style
MAterial
Stainless Steel
inlet/outlet
2" SLIP
Flow Rate
18-100 GPM
Mesh Sizes
30, 60, 100, 140, 200
Short Description
2 inch Chemical Resistant Sand Separator filter assembly with [insert mesh size] mesh stainless
Long Description
2" Chemical Resistant Water Sand Separator Full Filter Assembly with 'T' Style Body and [insert mesh size] Mesh Stainless Steel Filter Element
Part Numbers
NT 2 SO 30SS HPP, NT 2 SO 60SS HPP, NT 2 SO 100SS HPP, NT 2 SO 140SS HPP, NT 2 SO 200SS HPP
CF 1.5 SO *SS HPP
Filter Type
Sand Separator
Body Style
Combo Filter
MAterial
Stainless Steel
inlet/outlet
1.5" SLIP
Flow Rate
10-50 GPM
Mesh Sizes
30, 60, 100, 140, 200
Short Description
1.5 inch Chemical Resistant Sand Separator filter assembly with [insert mesh size] mesh stainless
Long Description
1.5" Chemical Resistant Water Sand Separator Full Filter Assembly with Combo Style Body and [insert mesh size] Mesh Stainless Steel Filter Element
Part Numbers
CF 1.5 SO 30SS HPP, CF 1.5 SO 60SS HPP, CF 1.5 SO 100SS HPP, CF 1.5 SO 140SS HPP, CF 1.5 SO 200SS HPP
CF 2 SO *SS HPP
Filter Type
Sand Separator
Body Style
Combo Filter
MAterial
Stainless Steel
inlet/outlet
2" SLIP
Flow Rate
18-100 GPM
Mesh Sizes
30, 60, 100, 140, 200
Short Description
2 inch Chemical Resistant Sand Separator filter assembly with [insert mesh size] mesh stainless
Long Description
2" Chemical Resistant Water Sand Separator Full Filter Assembly with Combo Style Body and [insert mesh size] Mesh Stainless Steel Filter Element
Part Numbers
CF 2 SO 30SS HPP, CF 2 SO 60SS HPP, CF 2 SO 100SS HPP, CF 2 SO 140SS HPP, CF 2 SO 200SS HPP
L 1.5 SO *SS HPP
Filter Type
Sand Separator
Body Style
L-Style
MAterial
Stainless Steel
inlet/outlet
1.5" SLIP
Flow Rate
5-20 GPM (LP), 15-40 GPM (HP)
Mesh Sizes
30, 60, 100, 140, 200
Short Description
1.5 inch Chemical Resistant Sand Separator filter assembly with [insert mesh size] mesh stainless
Long Description
1.5" Chemical Resistant Water Sand Separator Full Filter Assembly with 'L' Style Body and [insert mesh size] Mesh Stainless Steel Filter Element
Part Numbers
L 1.5 SO 30SS HPP, L 1.5 SO 60SS HPP, L 1.5 SO 100SS HPP, L 1.5 SO 140SS HPP, L 1.5 SO 200SS HPP
L 2 SO *SS HPP
Filter Type
Sand Separator
Body Style
L-Style
MAterial
Stainless Steel
inlet/outlet
2" SLIP
Flow Rate
35-90 GPM
Mesh Sizes
30, 60, 100, 140, 200
Short Description
2 inch Chemical Resistant Sand Separator filter assembly with [insert mesh size] mesh stainless
Long Description
2" Chemical Resistant Water Sand Separator Full Filter Assembly with 'L' Style Body and [insert mesh size] Mesh Stainless Steel Filter Element
Part Numbers
L 2 SO 30SS HPP, L 2 SO 60SS HPP, L 2 SO 100SS HPP, L 2 SO 140SS HPP, L 2 SO 200SS HPP
Hot Water Filters
3/4-* HT-P
Filter Type
Screen
Body Style
T-Style
MAterial
Stainless Steel
inlet/outlet
3/4" FPT
Flow Rate
1-25 GPM
Mesh Sizes
30, 60, 100, 140, 200
Short Description
.75 inch Hot Water Screen Filter Assembly with [insert mesh size] mesh stainless
Long Description
3/4" Hot Water Screen Filter Assembly with [insert mesh size] Mesh Stainless Steel Filter Element
Part Numbers
3/4-30 HT-P, 3/4-60 HT-P, 3/4-100 HT-P, 3/4-140 HT-P, 3/4-200 HT-P
1-1/4-* HT-P
Filter Type
Screen
Body Style
T-Style
MAterial
Stainless Steel
inlet/outlet
1 1/4" FPT
Flow Rate
10-50 GPM
Mesh Sizes
30, 60, 100, 140, 200
Short Description
1.25 inch Hot Water Screen Filter Assembly with [insert mesh size] mesh stainless
Long Description
1 1/4" Hot Water Screen Filter Assembly with [insert mesh size] Mesh Stainless Steel Filter Element
Part Numbers
1-1/4-30 HT-P, 1-1/4-60 HT-P, 1-1/4-100 HT-P, 1-1/4-140 HT-P, 1-1/4-200 HT-P
1-1/2-* HT-P
Filter Type
Screen
Body Style
T-Style
MAterial
Stainless Steel
inlet/outlet
1 1/2" FPT
Flow Rate
18-100 GPM
Mesh Sizes
30, 60, 100, 140, 200
Short Description
1.5 inch Hot Water Screen Filter Assembly with [insert mesh size] mesh stainless
Long Description
1 1/2" Hot Water Screen Filter Assembly with [insert mesh size] Mesh Stainless Steel Filter Element
Part Numbers
1-1/2-30 HT-P, 1-1/2-60 HT-P, 1-1/2-100 HT-P, 1-1/2-140 HT-P, 1-1/2-200 HT-P
3/4-*ST HT-P
Filter Type
Sand Separator
Body Style
T-Style
MAterial
Stainless Steel
inlet/outlet
3/4" FPT
Flow Rate
1-25 GPM
Mesh Sizes
30, 60, 100, 140, 200
Short Description
.75 inch Hot Water Sand Separator Filter Assembly with [insert mesh size] mesh stainless
Long Description
3/4" Hot Water Sand Separator Filter Assembly with [insert mesh size] Mesh Stainless Steel Filter Element
Part Numbers
3/4-30ST HT-P, 3/4-60ST HT-P, 3/4-100ST HT-P, 3/4-140ST HT-P, 3/4-200ST HT-P
Heavy Duty Filters
NT 150-*SS-P
Filter Type
Screen
Body Style
T-Style
MAterial
Stainless Steel
inlet/outlet
1.5" SLIP
Flow Rate
Mesh Sizes
.046", .063", .156"
Short Description
1.5 inch Heavy Duty Screen filter assembly with [insert mesh size] stainless
Long Description
1.5" Heavy Duty Screen Full Filter Assembly with 'T' Style Body and [insert mesh size] Stainless Steel Filter Element
Part Numbers
NT 150-046SS-P, NT 150-063SS-P, NT 150-156SS-P
NT 150-*SSHP-P
Filter Type
Screen
Body Style
T-Style
MAterial
Stainless Steel
inlet/outlet
1.5" SLIP
Flow Rate
Mesh Sizes
.046", .063", .156"
Short Description
1.5 inch Heavy Duty Chemical Resistant Screen filter assembly with [insert mesh size] stainless
Long Description
1.5" Heavy Duty Chemical Resistant Screen Full Filter Assembly with 'T' Style Body and [insert mesh size] Stainless Steel Filter Element
Part Numbers
NT 150-046SSHP-P, NT 150-063SSHP-P, NT 150-156SSHP-P
CF 150-*SS-P
Filter Type
Screen
Body Style
Combo Filter
MAterial
Stainless Steel
inlet/outlet
1.5" SLIP
Flow Rate
—
Mesh Sizes
.046", .063", .156"
Short Description
1.5 inch Heavy Duty Chemical Resistant Screen filter assembly with [insert mesh size] stainless
Long Description
1.5" Heavy Duty Chemical Resistant Screen Full Filter Assembly with 'T' Style Body and [insert mesh size] Stainless Steel Filter Element
Part Numbers
CF 150-046SS-P, CF 150-063SS-P, CF 150-156SS-P
NT 200-*SS-P
Filter Type
Screen
Body Style
T-Style
MAterial
Stainless Steel
inlet/outlet
2" SLIP
Flow Rate
18-100 GPM
Mesh Sizes
.046", .063", .156"
Short Description
2 inch Heavy Duty Screen filter assembly with [insert mesh size] stainless
Long Description
2" Heavy Duty Screen Full Filter Assembly with 'T' Style Body and [insert mesh size] Stainless Steel Filter Element
Part Numbers
NT 200-046SS-P, NT 200-063SS-P, NT 200-156SS-P
NT 200-*SSHP-P
Filter Type
Screen
Body Style
T-Style
MAterial
Stainless Steel
inlet/outlet
2" SLIP
Flow Rate
18-100 GPM
Mesh Sizes
.046", .063", .156"
Short Description
2 inch Heavy Duty Chemical Resistant Screen filter assembly with [insert mesh size] stainless
Long Description
2" Heavy Duty Chemical Resistant Screen Full Filter Assembly with 'T' Style Body and [insert mesh size] Stainless Steel Filter Element
Part Numbers
NT 200-046SSHP-P, NT 200-063SSHP-P, NT 200-156SSHP-P
CF 200-*SS-P
Filter Type
Screen
Body Style
Combo Filter
MAterial
Stainless Steel
inlet/outlet
2" SLIP
Flow Rate
18-100 GPM
Mesh Sizes
.046", .063", .156"
Short Description
2 inch Heavy Duty Screen filter assembly with [insert mesh size] stainless
Long Description
2" Heavy Duty Screen Full Filter Assembly with Combo Style Body and [insert mesh size] Stainless Steel Filter Element
Part Numbers
CF 200-046SS-P, CF 200-063SS-P, CF 200-156SS-P
L 150-*
Filter Type
Screen
Body Style
L-Style
MAterial
Stainless Steel
inlet/outlet
1.5" SLIP
Flow Rate
5 - 20 GPM (LP), 15 - 40 GPM (HP)
Mesh Sizes
.046", .063", .156"
Short Description
1.5 inch Heavy Duty Screen L filter assembly with [insert mesh size] stainless
Long Description
1.5" Heavy Duty Screen Full Filter Assembly with 'L' Style Body and [insert mesh size] Stainless Steel Filter Element
Part Numbers
L 150-046, L 150-063, L 150-156
L 200-*
Filter Type
Screen
Body Style
L-Style
MAterial
Stainless Steel
inlet/outlet
2" SLIP
Flow Rate
35-90 GPM
Mesh Sizes
.046", .063", .156"
Short Description
2 inch Heavy Duty Screen L filter assembly with [insert mesh size] stainless
Long Description
2" Heavy Duty Screen Full Filter Assembly with 'L' Style Body and [insert mesh size] Stainless Steel Filter Element
Part Numbers
L 200-046, L 200-063, L 200-156
Filter Media
L-Style Stainless Steel Sediment Trapper Filter Elements
MAterial
Stainless Steel Mesh
compatible Filter Body Styles
T-Style/Combo
Applications
Cold Water
Filter Sizes
1", 1.5", 2"
Mesh Size Options
30 (500μm), 60 (250μm), 100 (150μm), 140 (100μm), 200 (75μm)
Short Description
[insert filter element size]" L style stainless steel sediment trapper element only w/ [insert mesh size] mesh
Example: 1.5" L style stainless steel sediment trapper element only w/ 30 mesh
Long Description
Vu-Flow [insert filter element size]" L style sediment trapper [insert micron size] micron stainless steel mesh replacement element
Example: Vu-Flow 1.5" L style sediment trapper 500 micron stainless steel mesh replacement element
Part numbers:
1.5" Filter Elements: L 1.5 SC 30SS, L 1.5 SC 60SS, L 1.5 SC 100SS, L 1.5 SC 140SS, L 1.5 SC 200SS
2: Filter Elements: L 2 SC 30SS, L 2 SC 60SS, L 2 SC 100SS, L 2 SC 140SS, L 2 SC 200SS
Stainless Steel Sediment Trapper Filter Elements
MAterial
Stainless Steel Mesh
compatible Filter Body Styles
T-Style/Combo
Applications
Cold Water
Filter Sizes
1", 1.5", 2"
Mesh Size Options
30 (500μm), 60 (250μm), 100 (150μm), 140 (100μm), 200 (75μm)
Short Description
[insert filter element size]" stainless steel sediment trapper element only w/ [insert mesh size] mesh
Example: 1" stainless steel sediment trapper element only w/ 30 mesh
Long Description
Vu-Flow [insert filter element size]" Sediment Trapper [insert micron size] micron Stainless Steel mesh replacement element.
Example: Vu-Flow 1" Sediment Trapper 500 micron Stainless Steel mesh replacement element.
Part numbers:
1" Filter Elements: NT 1 SC 30SS, NT 1 SC 60SS, NT 1 SC 100SS, NT 1 SC 140SS, NT 1 SC 200SS
1.5" Filter Elements: NT 1.5 SC 30SS, NT 1.5 SC 60SS, NT 1.5 SC 100SS, NT 1.5 SC 140SS, NT 1.5 SC 200SS
2" Filter Elements: NT 2 SC 30SS, NT 2 SC 60SS, NT 2 SC 100SS, NT 2 SC 140SS, NT 2 SC 200SS
L-Style Polyester Mesh Sediment Trapper
MAterial
Polyester Mesh
compatible Filter Body Styles
L-Style
Applications
Cold Water
Filter Sizes
1", 1.5", 2"
Mesh Size Options
24 (700μm), 30 (500μm), 40 (350μm), 60 (250μm), 100 (150μm), 140 (100μm), 250 (50μm), 500 (25μm), 1000 (15μm)
Short Description
[insert filter element size]" L style sediment trapper element only w/ [insert mesh size] mesh
Example: 1.5" L style sediment trapper element only w/ 24 mesh
Long Description
Vu-Flow [insert filter element size]" L style sediment trapper [insert micron size] micron polyester mesh replacement element
Example: Vu-Flow 1.5" L style sediment trapper 700 micron polyester mesh replacement element
Part numbers:
1.5" Filter Elements: L 1.5 SC 24, L 1.5 SC 30, L 1.5 SC 40, L 1.5 SC 60, L 1.5 SC 100, L 1.5 SC 140, L 1.5 SC 250, L 1.5 SC 500, L 1.5 SC 1000
2" Filter Elements: L 2 SC 24, L 2 SC 30L 2 SC 40, L 2 SC 60, L 2 SC 100, L 2 SC 140, L 2 SC 250, L 2 SC 500, L 2 SC 1000
Polyester Mesh Sediment Trapper Filter Elements
MAterial
Polyester Mesh
compatible Filter Body Styles
T-Style/Combo
Applications
Cold Water
Filter Sizes
1", 1.5", 2"
Mesh Size Options
24 (700μm), 30 (500μm), 40 (350μm), 60 (250μm), 100 (150μm), 140 (100μm), 250 (50μm), 500 (25μm), 1000 (15μm)
Short Description
[insert filter element size]" sediment trapper element only w/ [[insert mesh size] mesh
Example: 1" sediment trapper element only w/ 24 mesh
Long Description
Vu-Flow [insert filter element size]" Sediment Traper [insert micron size] micron polyester mesh replacement element.
Example: Vu-Flow 1" Sediment Traper 700 micron polyester mesh replacement element.
Part numbers:
1" Filter Elements: NT 1 SC 24, NT 1 SC 30, NT 1 SC 40, NT 1 SC 60, NT 1 SC 100, NT 1 SC 140, NT 1 SC 250, NT 1 SC 500, NT 1 SC 1000
1.5" Filter Elements: NT 1.5 SC 24, NT 1.5 SC 30, NT 1.5 SC 40, NT 1.5 SC 60, NT 1.5 SC 100, NT 1.5 SC 140, NT 1.5 SC 250, NT 1.5 SC 500, NT 1.5 SC 1000
2" Filter Elements: NT 2 SC 24, NT 2 SC 30, NT 2 SC 40, NT 2 SC 60, NT 2 SC 100, NT 2 SC 140, NT 2 SC 250, NT 2 SC 500, NT 2 SC 1000
L-Style Stainless Steel Mesh Spin Down Filter Elements
MAterial
Stainless Steel Mesh
compatible Filter Body Styles
L-Style
Applications
Cold Water
Filter Sizes
1", 1.5", 2"
Mesh Size Options
30 (500μm), 60 (250μm), 100 (150μm), 140 (100μm), 200 (75μm)
Short Description
[insert filter element size]" L style stainless steel screen element only w/ [insert mesh size] mesh
Example: 1.5" L style stainless steel screen element only w/ 30 mesh
Long Description
Vu-Flow [insert filter element size]" L style with [insert micron size] micron stainless steel mesh replacement element.
Example: Vu-Flow 1.5" L style with 500 micron stainless steel mesh replacement element.
Part numbers:
1.5" Filter Elements: L 60 SC 30SS, L 60 SC 60SS, L 60 SC 100SS, L 60 SC 140SS, L 60 SC 200SS
2" Filter Elements: L 120 SC 30SS, L 120 SC 60SS, L 120 SC 100SS, L 120 SC 140SS, L 120 SC 200SS
Stainless Steel Mesh Spin Down Filter Elements
MAterial
Stainless Steel Mesh
compatible Filter Body Styles
T-Style/Combo
Applications
Cold Water
Filter Sizes
1", 1.5", 2"
Mesh Size Options
30 (500μm), 60 (250μm), 100 (150μm), 140 (100μm), 200 (75μm)
Short Description
[insert filter element size]" stainless steel screen element only w/ [insert mesh size] mesh
Example: 1" stainless steel screen element only w/ 30 mesh
Long Description
Vu-Flow [insert filter element size]" Spin Down [insert micron size] micron stainless steel mesh replacement element.
Example: Vu-Flow 1" Spin Down 700 micron stainless steel mesh replacement element.
Part numbers:
1" Filter Elements: NT 30 SC 30SS, NT 30 SC 60SS, NT 30 SC 100SS, NT 30 SC 140SS, NT 30 SC 200SS
1.5" Filter Elements: NT 60 SC 30SS, NT 60 SC 60SS, NT 60 SC 100SS, NT 60 SC 140SS, NT 60 SC 200SS
2" Filter Elements: NT 120 SC 30SS, NT 120 SC 60SS, NT 120 SC 100SS, NT 120 SC 140SS, NT 120 SC 200SS
L-Style Polyester Mesh Spin Down Filter Elements
MAterial
Polyester Mesh
compatible Filter Body Styles
L-Style
Applications
Cold Water
Filter Sizes
1", 1.5", 2"
Mesh Size Options
24 (700μm), 30 (500μm), 40 (350μm), 60 (250μm), 100 (150μm), 140 (100μm), 250 (50μm), 500 (25μm), 1000 (15μm)
Short Description
[insert filter element size]" L style screen element only w/ [insert mesh size] mesh
Example: 1.5" L style screen element only w/ 24 mesh
Long Description
Vu-Flow [insert filter element size]" L Style Filter [insert micron size] micron polyester mesh replacement element.
Example: Vu-Flow 1.5" L Style Filter 700 micron polyester mesh replacement element.
Part numbers:
1.5" Filter Media: L 60 SC 24, L 60 SC 30, L 60 SC 40, L 60 SC 60, L 60 SC 100, L 60 SC 140, L 60 SC 250, L 60 SC 500, L 60 SC 1000
2" Filter Media: L 120 SC 24, L 120 SC 30, L 120 SC 40, L 120 SC 60, L 120 SC 100, L 120 SC 140, L 120 SC 250, L 120 SC 500, L 120 SC 1000
Polyester Mesh Spin Down Filter Elements
MAterial
Polyester Mesh
compatible Filter Body Styles
T-Style/Combo
Applications
Cold Water
Filter Sizes
1", 1.5", 2"
Mesh Size Options
24 (700μm), 30 (500μm), 40 (350μm), 60 (250μm), 100 (150μm), 140 (100μm), 250 (50μm), 500 (25μm), 1000 (15μm)
Short Description
[insert filter element size]" screen element only w/ [insert mesh size] mesh
Example: 1" screen element only w/ 24 mesh
Long Description
Vu-Flow [insert filter element size]" Spin Down [insert micron size] micron polyester mesh replacement element.
Example: Vu-Flow 1" Spin Down 700 micron polyester mesh replacement element.
Part numbers:
1" Filter Media: NT 30 SC 24, NT 30 SC 30, NT 30 SC 40, NT 30 SC 60, NT 30 SC 100, NT 30 SC 140, NT 30 SC 250, NT 30 SC 500, NT 30 SC 1000
1.5" Filter Media: NT 60 SC 24, NT 60 SC 30, NT 60 SC 40, NT 60 SC 60, NT 60 SC 100, NT 60 SC 140, NT 60 SC 250, NT 60 SC 500, NT 60 SC 1000
2" Filter Media: NT 120 SC 24, NT 120 SC 30, NT 120 SC 40, NT 120 SC 60, NT 120 SC 100, NT 120 SC 140, NT 120 SC 250, NT 120 SC 500, NT 120 SC 1000
Filter Covers
Clear Spin Down Filter Covers
Filter Sizes & Part Numbers
3/4" (NT 30 C), 1" (NT 30 C)
1.5" (NT 60 C), 2" (NT 120 C)
compatible Filter Body Styles
T-Style, Combo, L-Style
Application
Cold Water
Short Description
[insert cover size]" cover for screen filter
Long Description
Vu-Flow [insert cover size]" Spin Down clear cover replacement
Amber Spin Down Filter Covers
Filter Sizes & Part Numbers
3/4" (NT 30 C-HP), 1" (NT 30 C-HP)
1.5" (NT 60 C-HP), 2" (NT 120 C-HP)
compatible Filter Body Styles
T-Style, Combo, L-Style
Application
Chemical Resistant
Short Description
[insert cover size]" high performance cover for screen filter
Long Description
Vu-Flow [insert cover size]" Spin Down high performance cover replacement
Clear Sediment Trapper Filter Covers
Filter Sizes & Part Numbers
1" (NT 1 C)
compatible Filter Body Styles
T-Style, Combo, L-Style
Application
Cold Water
Short Description
[insert cover size]" cover for sediment trapper filter
Long Description
Vu-Flow [insert cover size]" sediment trapper clear cover replacement
Amber Sediment Trapper Filter Covers
Filter Sizes & Part Numbers
1" (NT 1 C-HP)
compatible Filter Body Styles
T-Style, Combo, L-Style
Application
Chemical Resistant
Short Description
[insert cover size]" high performance cover for sediment trapper filter
Long Description
Vu-Flow [insert cover size]" sediment trapper high performance cover replacement
Filter Bodies
T-Style Filter Bodies
Body Sizes & Part Numbers
3/4" (NT 75 B), 1" (NT 30 B)
1.5" (NT 60 B), 2" (NT 120 B)
Application
Cold Water
Short Description
3/4" FPT filter body
-OR-
[1", 1.5", 2"] slip x slip filter body
Long Description
Vu-Flow 3/4" FPT replacement body used for both spin down and sediment trapper complete filters
-OR-
Vu-Flow [1",1.5",2"] slip x slip replacement body used for both spin down and sediment trapper complete filters
Combo Filter Bodies
Body Sizes & Part Numbers
1.5" (CF 60 B)
2" (CF 120 B)
Application
Cold Water
Short Description
[1.5", 2"] slip x slip combo filter body
Long Description
Vu-Flow [1.5", 2"] slip x slip combo replacement body used for both spin down and sediment trapper complete filters
L-Style Filter Bodies
Body Sizes & Part Numbers
1.5" (L 60 B)
2" (L 120 B)
Application
Cold Water
Short Description
[1.5", 2"] angle filter body
Long Description
Vu-Flow [1.5", 2"] slip x slip L style replacement body used for both spin down and sediment trapper complete filters
T-Style Pressure Gauge Filter Bodies
Body Sizes & Part Numbers
3/4" (PGB 75 B), 1" (PGB 30 B)
1.5" (PGB 60 B), 2" (PGB 120 B)
Application
Cold Water
Short Description
3/4" FPT filter body w/ pressure gauge
-OR-
[1", 1.5", 2"] slip x slip filter body w/ pressure gauge
Long Description
Vu-Flow 3/4" FPT pressure gauge replacement body used for both spin down and sediment trapper complete filters
-OR-
Vu-Flow [1", 1.5', 2"] slip x slip pressure gauge replacement body used for both spin down and sediment trapper complete filters
Hot Water Filter Bodies
Body Sizes & Part Numbers
3/4" (.75B HT), 1-1/4"(1.25B HT), 1-1/2" (1.5B HT)
Application
Hot Water
Short Description
[3/4", 1-1/4", 1-1/2"] FPT hot water filter body
Long Description
Vu-Flow [.75", 1.25", 1.5"] FNPT X FNPT hot water replacement filter body
Electric Valves & Accessories
1" 200 Series Electric Valves
Part Numbers
I210-050-12VAC (12v)
I210-050-12VDC (12v DC)
I210-050-24AC (24v)
I210-050-115ACF (115v)
I210-050-240VAC (240v)
Application
Cold Water
Voltages
12v, 12v DC, 24v, 115v, 240v
Short Description
Electric valve (200 series)
Long Description
1" Electric Valve 200 series [insert voltage]
1.5" 200 Series Electric Valves
Part Numbers
I215-050-24AC (24v)
I215-050-115ACF (115v)
I215-050-240AC (240v)
Application
Cold Water
Voltages
24v, 115v, 240v
Short Description
Electric valve (200 series)
Long Description
1.5" Electric Valve 200 series [insert voltage]
2" 200 Series Electric Valves
Part Numbers
I220-050-24AC (24v)
I220-050-115ACF (115v)
I220-050-240AC (240v)
Application
Cold Water
Voltages
24v, 115v, 240v
Short Description
Electric valve (200 series)
Long Description
2" Electric Valve 200 series [insert voltage]
1" 300 Series Electric Valves
Part Numbers
I310-050-24AC (24v)
I310-050-24VDC (24v DC)
I310-050-115ACF (115v)
I310-050-240AC (240v)
Application
Cold Water
Voltages
24v, 24v DC, 115v, 240v
Short Description
Electric valve (300 series)
Long Description
1" Electric Valve 300 series [insert voltage]
1.5" 500 Series Electric Valves
Part Numbers
I515-050-24AC (24v)
I515-050-115ACF (115v)
I515-050-240AC (240v)
Application
Cold Water
Voltages
24v, 115v, 240v
Short Description
Electric valve (500 series)
Long Description
1.5" Electric Valve 500 series [insert voltage]
2" 500 Series Electric Valves
Part Numbers
I520-050-24AC (24v)
I520-050-115ACF (115v)
I520-050-240AC (240v)
Application
Cold Water
Voltages
24v, 115v, 240v
Short Description
Electric valve (500 series)
Long Description
2" Electric Valve 500 series [insert voltage]
Click-It
Part Number
VL-1
4" Valve Cover
Part Number
P 4" VALVE COVR
Solenoid
Part Numbers
I701N12VAC (12v)
I701N12VDC (12v DC)
I701N24VAC (24v)
I701N120VAC-FH (110-120v)
I701N240VAC (240v)
Voltages
12v, 12v DC, 24v, 115v, 240v
Short Description
Solenoid (non-latching)
Long Description
[insert voltage] replacement solenoid for 200/300/500 series Electric Valves
Other Accessories
Basket Strainer
Part Numbers
4 BSK 24
4 BSK 60
4 BSK 100
4 BSK 250
Mesh sizes
24 (700μm), 60 (250μm), 100 (150μm), 250 (50μm)
Short Description
Basket strainer w/ [insert mesh size] mesh
Long Description
2" inlet X 4" outlet lake strainer with [insert micron size] micron mesh
Bushings
Part Numbers & Descriptions
478-010
1SA 1" SPIGOT ADAPTER
478-015
1.5SA 1.5" SPIGOT ADAPTER
478-020
2SA 2" SPIGOT ADAPTER
O-Rings
Part Numbers & Descriptions
NT 30 S
Vu-Flow 1" O-ring Kit 1 each Filter cover o-ring 1 each Filter element o-ring
NT 60 S
Vu-Flow 1.5" O-ring Kit 1 each Filter cover o-ring 1 each Filter element o-ring
NT 120 S
Vu-Flow 2" O-ring Kit 1 each Filter cover o-ring 1 each Filter element o-ring
L 60 S
Vu-Flow 1.5" L Filter O-ring Kit 1 each Filter cover o-ring 1 each Filter element o-ring
L 120 S
Vu-Flow 2" L Filter O-ring Kit 1 each Filter cover o-ring 1 each Filter element o-ring
Flush Valves
Part Numbers & Descriptions
PV
1/2" PVC Ball Valve for Cold Water Filters
PV HT
1/2" CPVC Ball Valve for Hot Water Filters
Automatic Flush Valves
Part Numbers & Descriptions
AFV
Automatic Flush Valve
AFV-KIT
Automatic Flush Valve Kit
AFV 188056
Automatic Flush Valve Accessories (Brass Ball Valve)
Cover Guards
Part Numbers & Descriptions
CG 100
Cover Guard 3/4 & 1"
CG 1 SO
Cover Guard 1" sediment trapper
CG 150
Cover Guard 1.5"
CG 200
Cover Guard 2"
Nipples
Part Numbers & Descriptions
For a full listing of part numbers and descriptions please download this PDF: VuFlow Nipples.
Other Accessories
Part Numbers & Descriptions
PA2010-01 PA2010-02 PA2010-03
Adapter Caps
13B-02
13B-05
Inserts (Brass)
13P-02
13P-05
13P-10
Inserts (Plastic)
FOG-01
FOG-02
Foggers (Brass)
